Freight elevator
Parameters
|
Load |
Speed |
Car Size (mm) |
Opening Size(mm) |
Opening Type |
Shaft Size(mm) |
Overhead Hight H2 |
Pit Depth H1 |
|
1000 |
0.5 |
1400×1600×2200 |
1400×2200 |
Center opening Four Panels |
2450×2000 |
4200 |
1450 |
|
1000 |
0.5 |
1400×1600×2200 |
1400×2200 |
Four Panels Opposite Side |
2450×2070 |
4200 |
1450 |
|
2000 |
0.5 |
1800×2300×2200 |
1800×2200 |
Center opening Four Panels |
3000×2700 |
4200 |
1450 |
|
2000 |
0.5 |
1800×2300×2200 |
1800×2200 |
Four Panels Opposite Side |
3000×2770 |
4200 |
1450 |
|
3000 |
0.5 |
2200×2600×2200 |
2200×2200 |
Center opening Four Panels |
3600×3000 |
4200 |
1450 |
|
3000 |
0.5 |
2200×2600×2200 |
2200×2200 |
Four Panels Opposite Side |
3600×3070 |
4200 |
1450 |
|
4000 |
0.5 |
2400×2900×2200 |
2400×2200 |
Center opening Four Panels |
3800×3370 |
4200 |
1450 |
|
4000 |
0.5 |
2400×2900×2200 |
2400×2200 |
Four Panels Opposite Side |
3800×3370 |
4200 |
1450 |
|
5000 |
0.5 |
2500×3500×2200 |
2400×2200 |
Center opening Four Panels |
4000×4000 |
4200 |
1450 |
|
5000 |
0.5 |
2500×3500×2200 |
2400×2200 |
Four Panels Opposite Side |
4000×3970 |
4200 |
1450 |

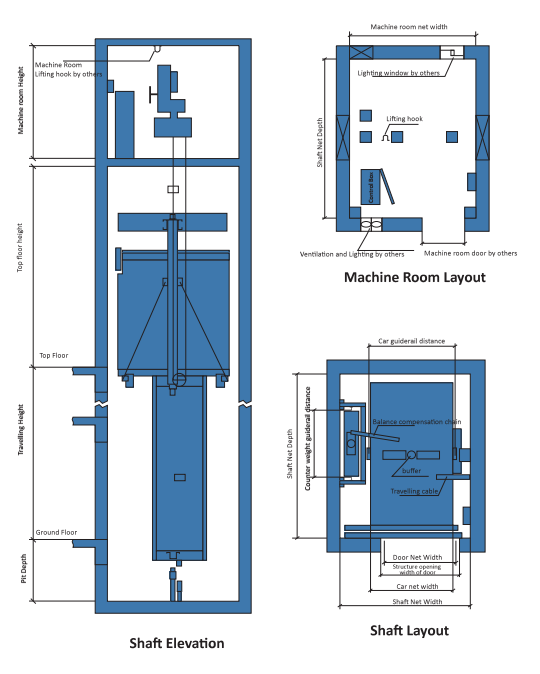

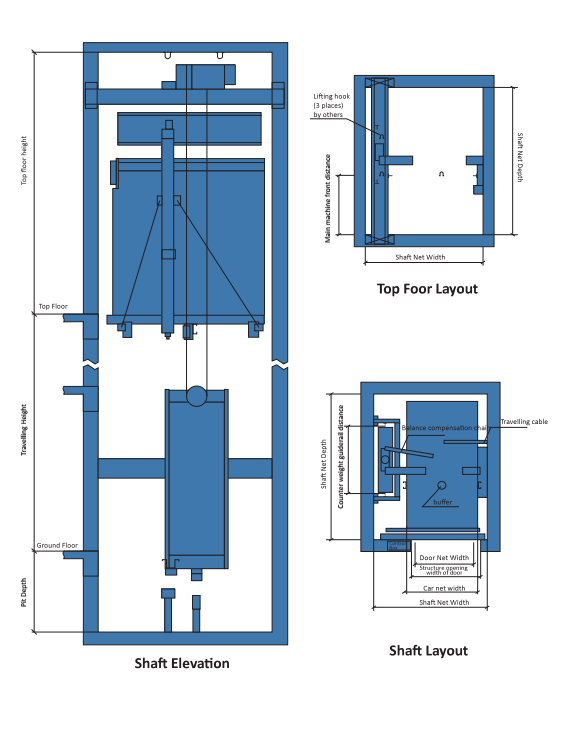

Layout Plan
