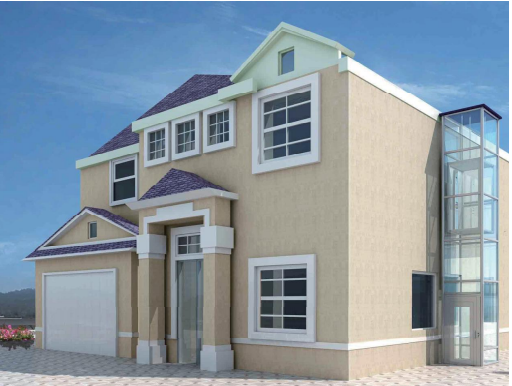

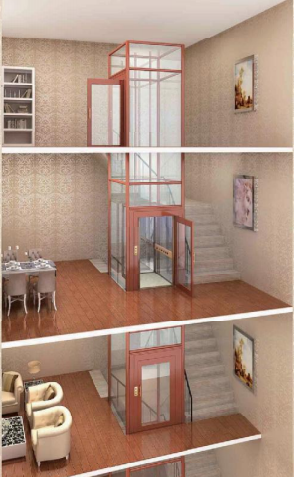

Home lift
Product Details
parameters
|
Load |
Speed |
Pers |
Car Size (mm) |
Opening Size(mm) |
Shaft Size(mm) |
Overhead Hight H2 |
Pit Depth H1 |
Travelling Height H |
|
320 |
0.4 |
4 |
900×1200×2150 |
700×2000 |
1600×1500 |
3300 |
900 |
12 |
|
320 |
0.4 |
4 |
900×1200×2150 |
800×2000 |
1600×1550 |
3300 |
900 |
12 |
|
400 |
0.4 |
5 |
900×1200×2150 |
700×2000 |
1600×1500 |
3300 |
900 |
12 |
|
400 |
0.4 |
5 |
900×1200×2150 |
800×2000 |
1600×1550 |
3300 |
900 |
12 |

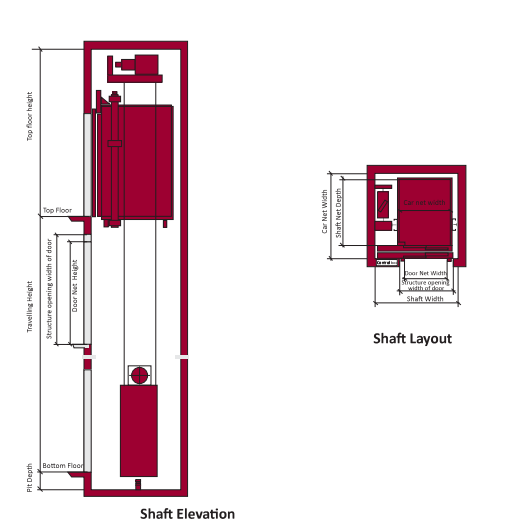

Layout Plan
