sightseeing elevator
Parameters
|
Load |
Speed |
Pers |
Car Size (mm) |
Opening Size(mm) |
Shaft Size(mm) |
Overhead Hight H2 |
Pit Depth H1 |
Travelling Height H |
|
630 |
1 |
8 |
1250×1300×2400 |
800×2100 |
2100×1800 |
4300 |
1600 |
50 |
|
630 |
1.5 |
8 |
1250×1300×2400 |
800×2100 |
2100×1800 |
4500 |
1600 |
75 |
|
630 |
1.75 |
8 |
1250×1300×2400 |
800×2100 |
2100×1800 |
4600 |
1600 |
85 |
|
800 |
1 |
10 |
1350×1400×2400 |
800×2100 |
2200×1900 |
4300 |
1600 |
50 |
|
800 |
1.5 |
10 |
1350×1400×2400 |
800×2100 |
2200×1900 |
4500 |
1600 |
75 |
|
800 |
1.75 |
10 |
1350×1400×2400 |
800×2100 |
2200×1900 |
4600 |
1600 |
85 |
|
1000 |
1 |
13 |
1600×1400×2400 |
900×2100 |
2450×1900 |
4300 |
1600 |
50 |
|
1000 |
1.5 |
13 |
1600×1400×2400 |
900×2100 |
2450×1900 |
4500 |
1600 |
75 |
|
1000 |
1.75 |
13 |
1600×1400×2400 |
900×2100 |
2450×1900 |
4600 |
1600 |
85 |
|
1250 |
1 |
16 |
1750×1600×2400 |
1000×2100 |
2700×2000 |
4450 |
1600 |
50 |
|
1250 |
1.5 |
16 |
1750×1600×2400 |
1000×2100 |
2700×2000 |
4650 |
1600 |
75 |
|
1250 |
1.75 |
16 |
1750×1600×2400 |
1000×2100 |
2700×2000 |
4750 |
1600 |
85 |
|
1600 |
1 |
21 |
1750×2000×2400 |
1000×2100 |
2700×2400 |
4500 |
1700 |
50 |
|
1600 |
1.5 |
21 |
1750×2000×2400 |
1000×2100 |
2700×2400 |
4850 |
1800 |
75 |
|
1600 |
1.75 |
21 |
1750×2000×2400 |
1000×2100 |
2700×2400 |
4900 |
1800 |
85 |

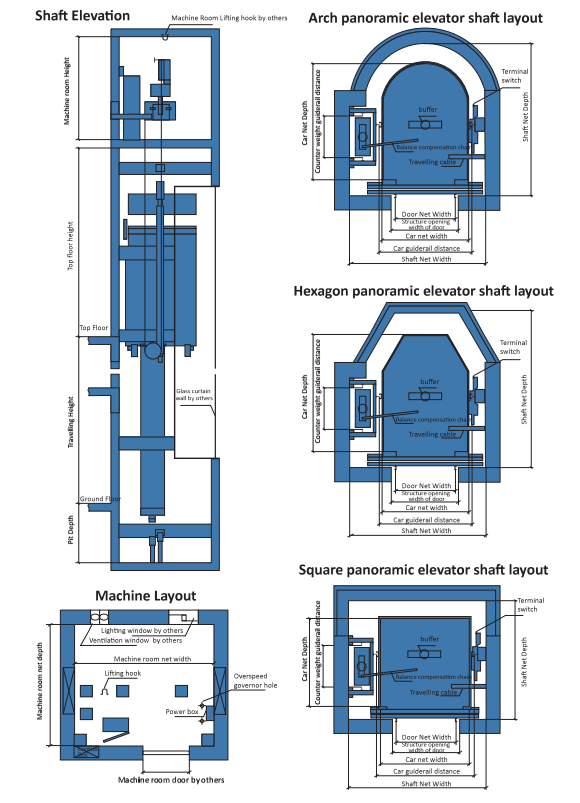

Layout Plan
